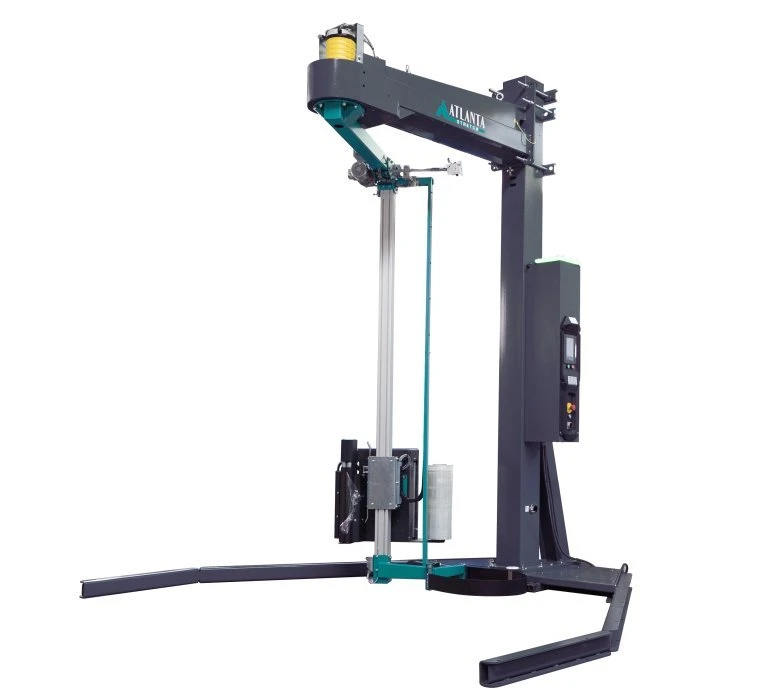

Lybra S
TECHNICAL CHARACTERISTICS
LYBRA S equipped with ARYA system
Control panel with 11'' Touch display
Useful diagonal Ø 2,075 mm
Maximum load dimensions: 1,200 x 1,200 mm
Useful wrapping height (Pallet included): 2,200 mm
Gear rotation ring
Load height reading via automatic photocell
Gradual rotation start/stop adjustable with inverter
Carriage up/down speed adjustable with inverter

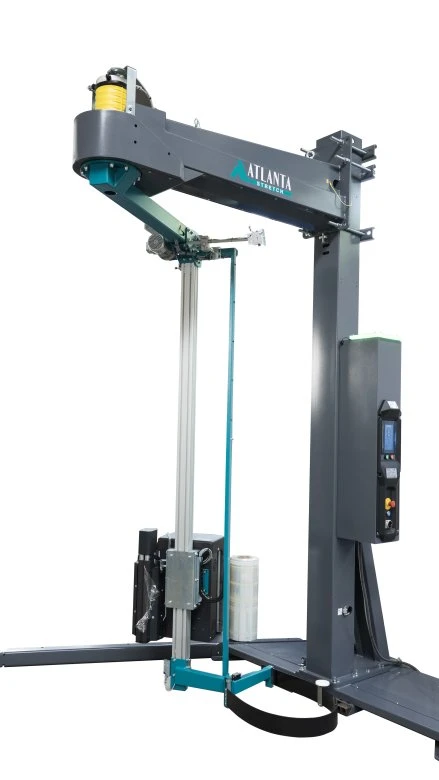

Safety bumper
Mushroom emergency button according to CE standards
Machine reset button according to CE standards
Acoustic signal to start cycle and stop at end of cycle
CYCLES SELECTABLE FROM PANEL
F01 - 01 - Standard cycle (up and down)
F01 - 02 - Half cycle (up only or down only)
F01 - 03 - Complete cycle with low revolutions at the same height as the start
F01 - 04 - Rapid cycle (with little or no overlap)
F01 - 05 - Layer cycle
F01 - 06 - Economic cycle (to save some low revolutions)
ADJUSTABLE PARAMETERS FROM THE CONTROL PANEL
wrapping programs created by the operator
All functions can be recalled from the display
Adjustable rotation speed from 5 to 12 rpm
Carriage ascent and descent speeds independently adjustable from 1.3 to 5.4 m/min
Revolutions at the base of the pallet from 1 to 10
Revolutions at the top of the pallet from 1 to 10
Intermediate reinforcement revolutions
Pallet height photocell reading delay
Film tension in each phase of the wrapping cycle (For FE-PRS-PS trolleys)
Variable film pre-stretch in each phase of the wrapping cycle (Optional with trolley PS)
ACTIVATABLE FUNCTIONS
Keyboard lock
Programmable start and end wrapping height
Wrapping height at pallet height with altimeter (photocell excluded)
Sheet feeder
Soft start cycle
Wrapping step cycle with reinforcement and programmable number of turns
Ergonomic comfort height for film reel change

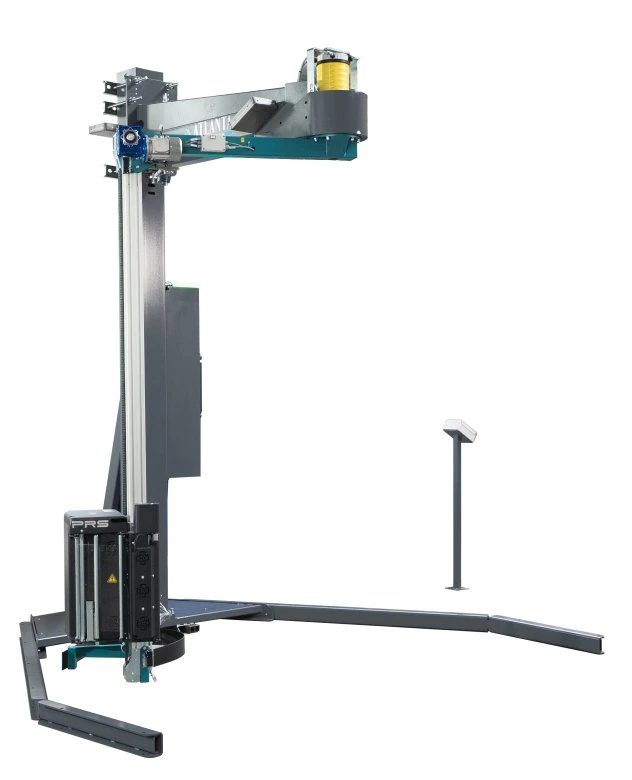

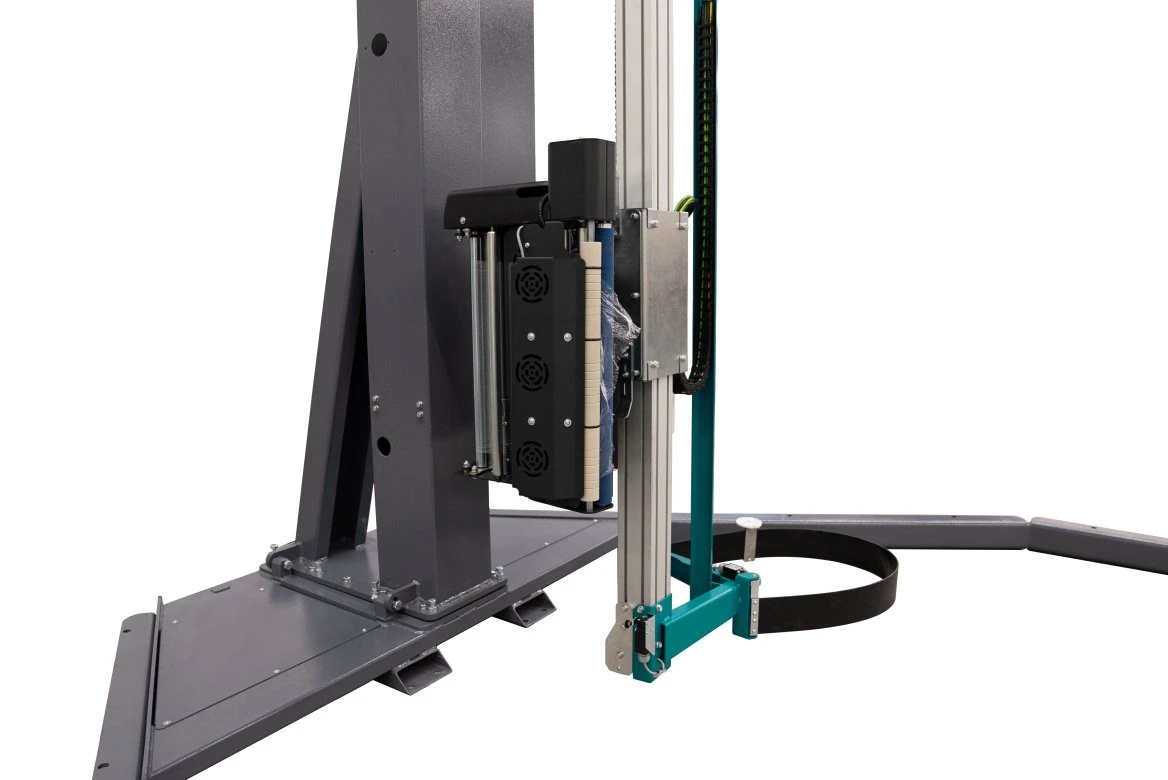

“PRS” TYPE CARRIAGE (POWER ROLLER STRETCH)
Motorized pre-stretch system with fixed ratio of 200% supplied as standard
Electronic control of the force on the load
Simple and quick film loading system with operator protection
Usable reel Ø 300 mm with internal Ø 76 mm – H = 500 mm
ARYA SYSTEM for automatic film hooking and cutting, including infrared remote control
