Lybra
A

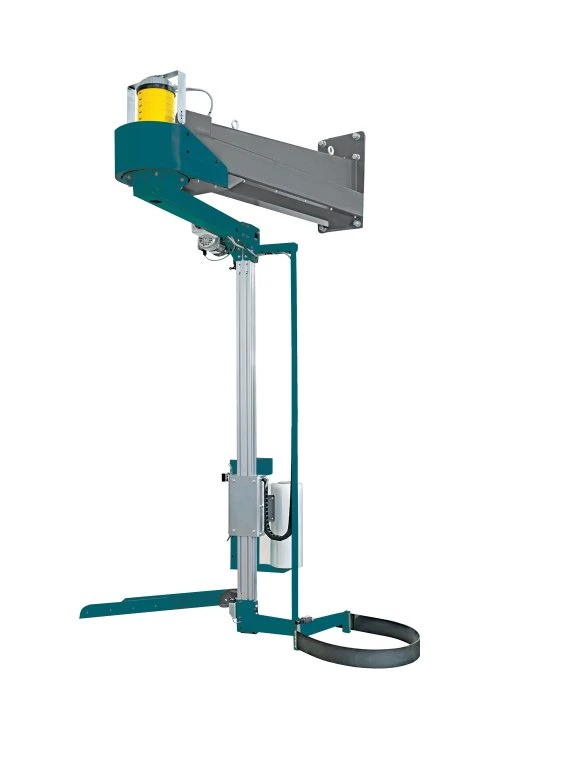

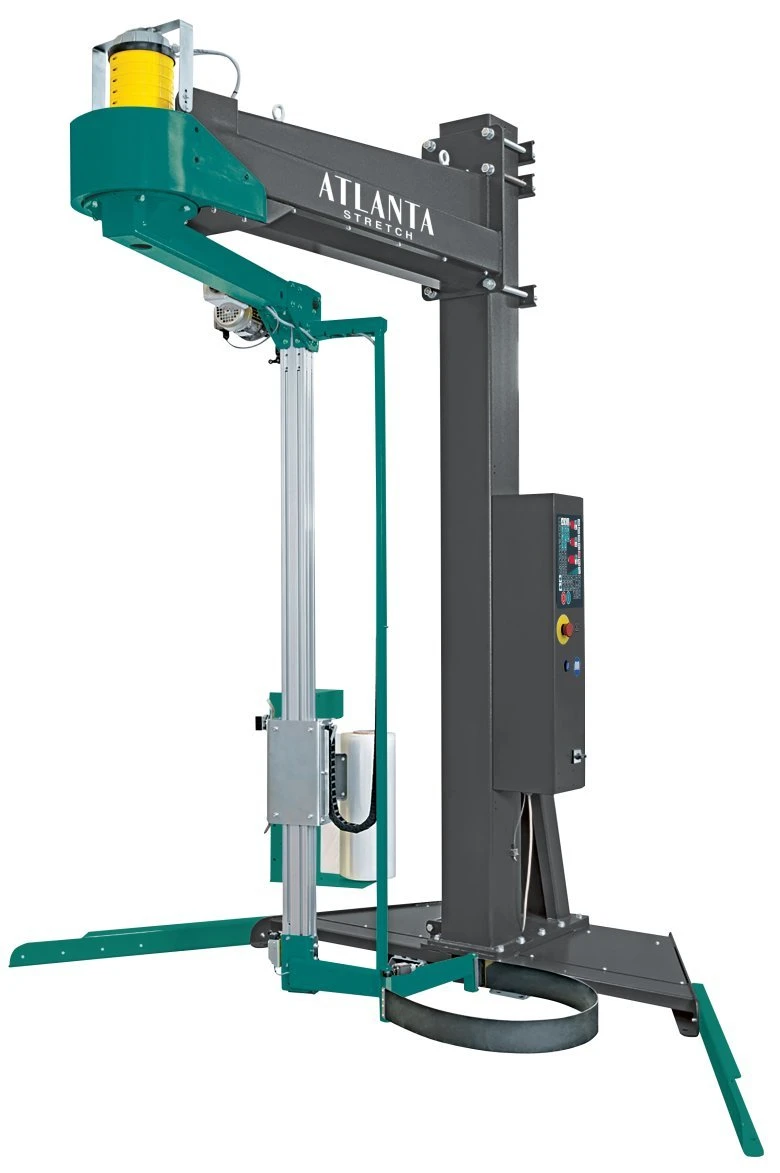

Semi-automatic rotating arm wrapping machine
TECHNICAL CHARACTERISTICS
MAXIMUM LOAD DIMENSIONS: 1100x1300 MM.
USEFUL WRAPPING HEIGHT (PALLET INCLUDED) 2500 mm.
LOAD HEIGHT READING BY PHOTOCELL OR ALTIMETER

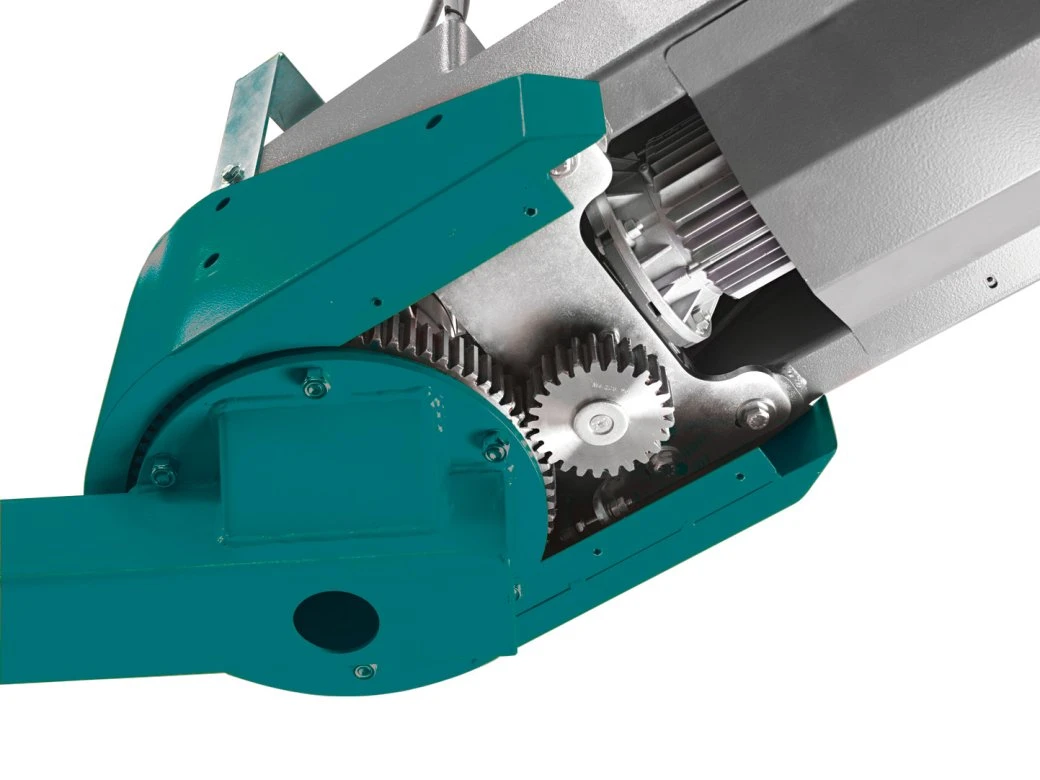

ARM ROTATION WITH GEAR AND HIGH RESISTANCE BEARING
GRADUAL ROTATION START / STOP ADJUSTABLE WITH INVERTER
TROLLEY UP / DOWN SPEED ADJUSTABLE WITH INVERTER
ACOUSTIC SIGNAL TO START CYCLE AND STOP IN PHASE AT END OF CYCLE
EMERGENCY MUSHROOM BUTTON ACCORDING TO EC STANDARDS
MACHINE IN OPERATION RESET BUTTON ACCORDING TO EC STANDARDS
DISPLAY OF STRETCH FILM CONSUMPTION (ON PRS AND OR PS)
PARAMETERS ADJUSTABLE FROM CONTROL PANEL
TURNS AT THE BASE OF THE PALLET FROM 1 TO 10
TURNS AT THE TOP OF THE PALLET FROM 1 TO 10
ROTATION SPEED ADJUSTABLE FROM 3 TO 12 RPM
CARRIAGE UPWARD SPEED FROM 1.3 TO 5.4 M/MIN.
CARRIAGE DOWNWARD SPEED FROM 1.3 TO 5.4 M/MIN.
PHOTOCELL READING DELAY
HEIGHT ADJUSTMENT AND NUMBER OF REINFORCEMENT TURN
CYCLES SELECTABLE FROM THE PANEL
RISE AND DESCENT CYCLE
SIMPLE CYCLE (ONLY RISING OR ONLY DESCENT)
SHEET FEEDER CYCLE
WINDING CYCLE WITH ALTIMETER (WITHOUT PHOTOCELL)
WINDING CYCLE WITH START AT A PRESET HEIGHT
99 STORED WINDING PROGRAMS
ALL FUNCTIONS RECALLABLE FROM THE DISPLAY
MANUAL MACHINE CONTROL BUTTONS
“FE” TYPE REEL HOLDER CARRIAGE WITH MECHANICAL BRAKE
ON RETURN ROLLER – WITH MANUAL ADJUSTMENT ON THE CARRIAGE.
USABLE COIL Ø 250 MM – H = 500 MM
STANDARD VOLTAGE: 230 V - 1PH+N+PE - 50/60 HZ.
INSTALLED POWER: 0.75 KW – 1.00 KW (WITH PRS / PS TROLLEY)
