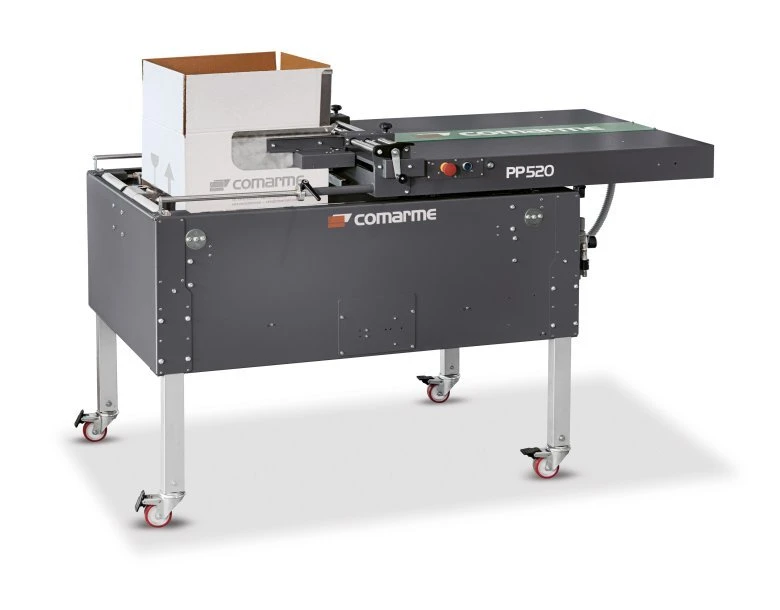

Pack Point 520

BOX DIMENSIONS:

Length min. mm 150 max. mm 700
Width min. mm 110 max. mm 500
Height min. mm 120 max. mm 500

TECHNICAL DATA:

Pneumatic operating pressure 4 bar
Air consumption per cycle 13 nl
Voltage 220 V single phase - 50/60 Hertz
Installed power 0.10 Kw
Electrical protection IP 54
Using temperatures + 5° C - max. +35° C
Work surface height 650 mm
Weight 163 Kg
Machine dimensions (L x W x H) mm. 1,945 x 716 x 868
RAL 7015 fixed parts, 6029 moving parts

PACK-POINT-520-670-v1-new-logo
