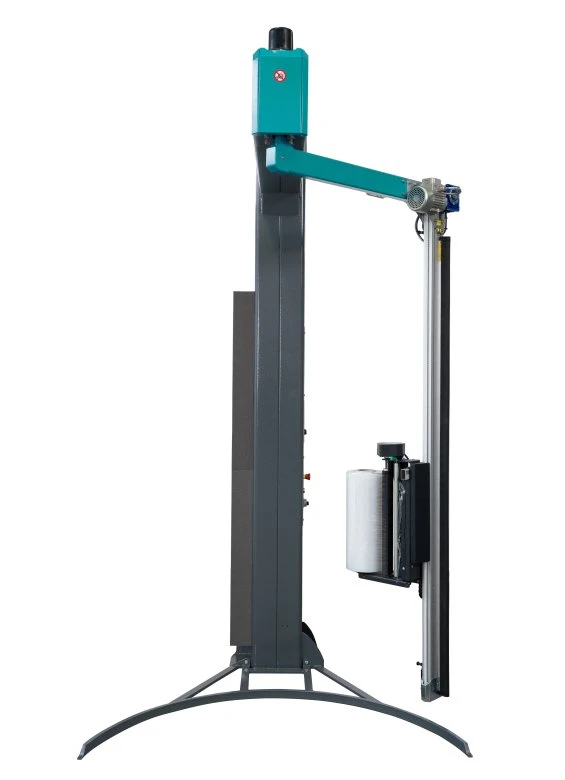

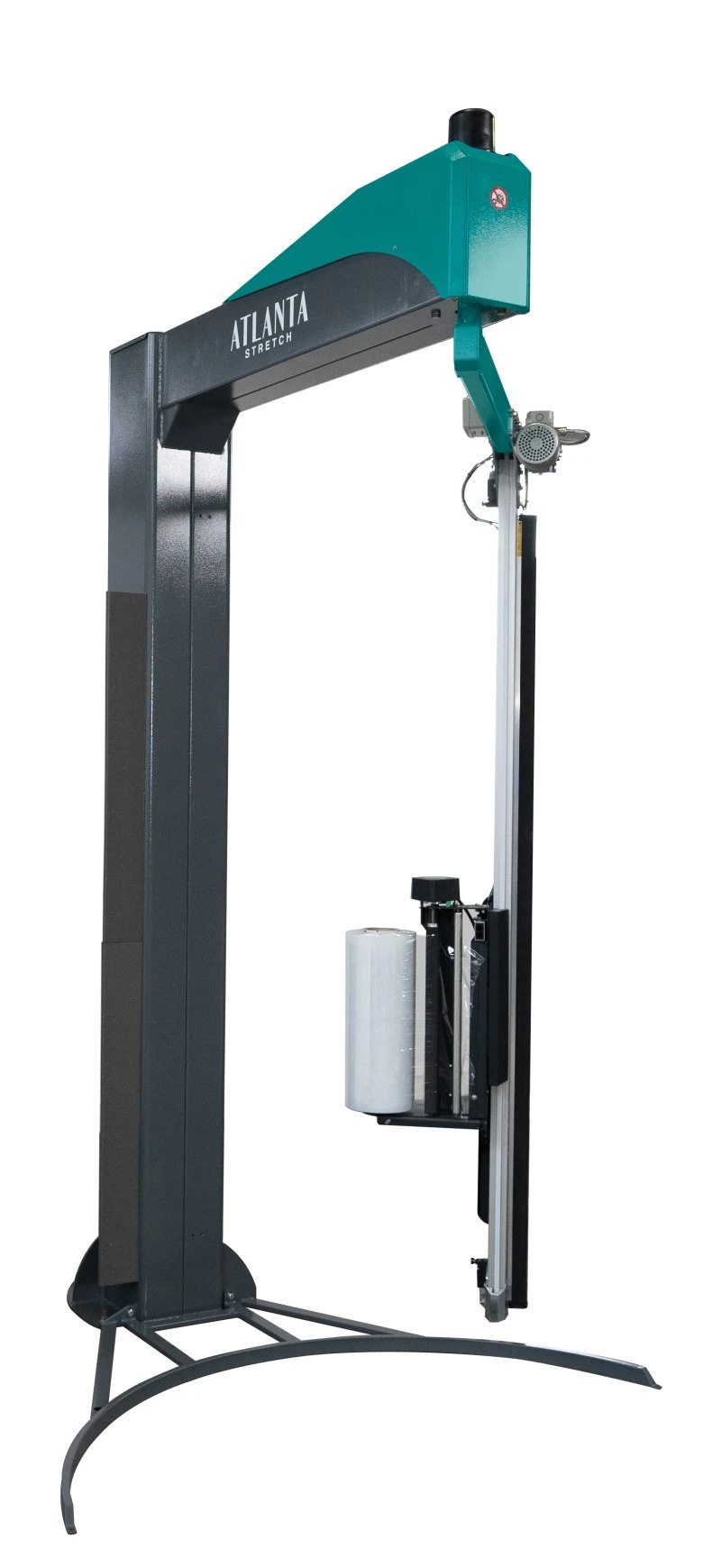

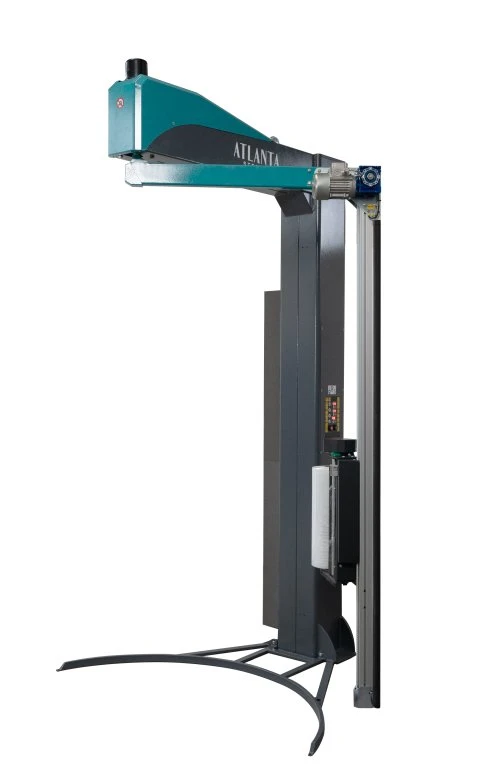

Lybra Easy

TECHNICAL CHARACTERISTICS

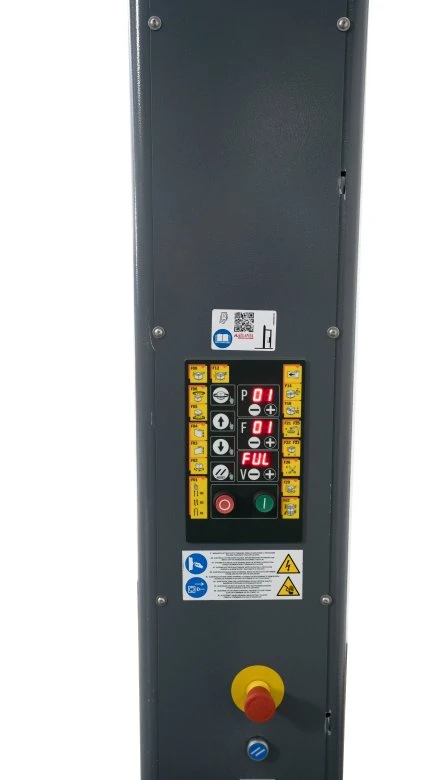

Control panel with KEY display

Useful diagonal Ø 1,700 mm

Maximum load dimensions: 1,200 x 1,200 mm

Useful wrapping height (Pallet included): 2,200 mm

Load height reading by automatic photocell

Gradual and adjustable rotation start/stop with inverter

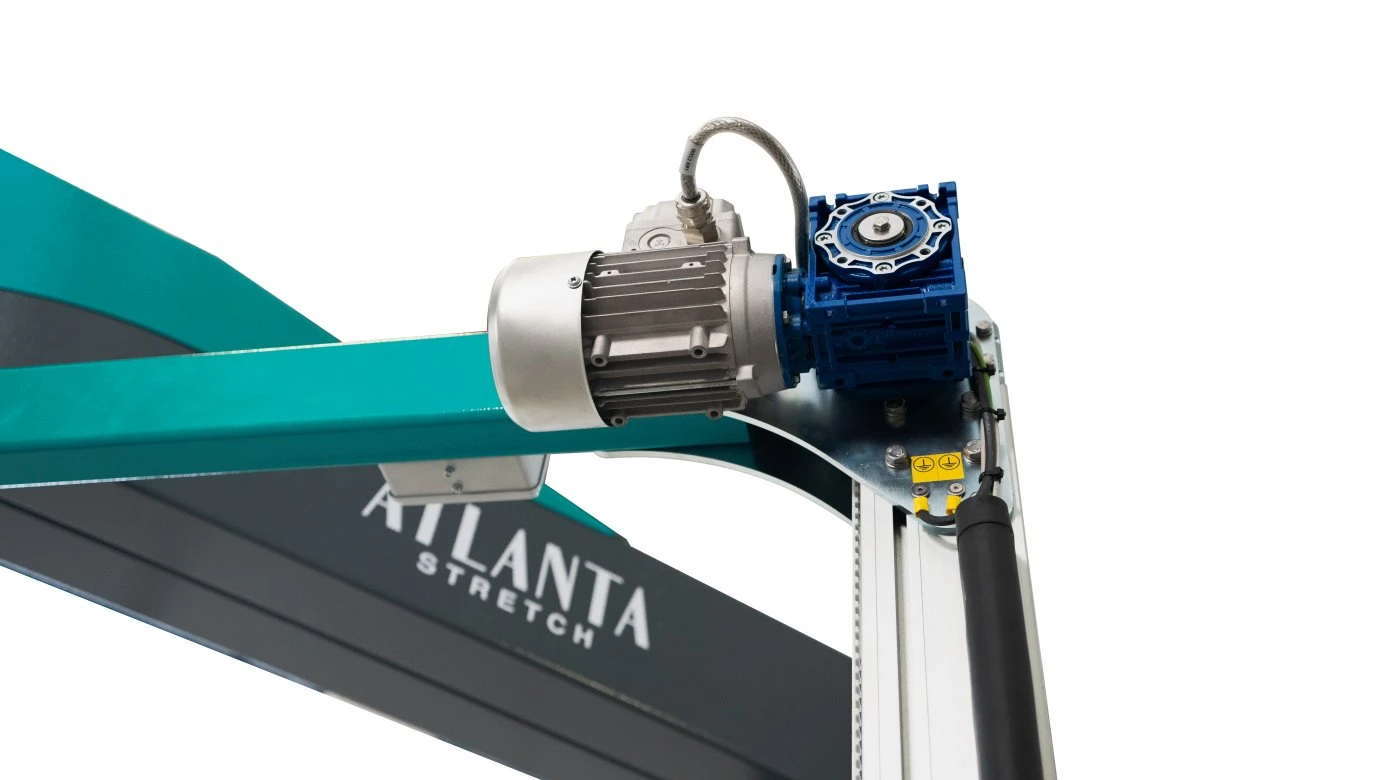

Adjustable carriage up/down speed with inverter

Sensitive safety edge

Mushroom emergency button according to CE standards

Machine reset button according to CE standards

Acoustic signal for cycle start and cycle end stop

CYCLES SELECTABLE FROM PANEL

F01 - 01 - Standard cycle (up and down)

F01 - 02 - Half cycle (up only or down only)

F01 - 03 - Complete cycle with low revolutions at the same height as the start

F01 - 04 - Rapid cycle (with little or no overlap)

F01 - 05 - Layer cycle

F01 - 06 - Economic cycle (to save some low turns)

ADJUSTABLE PARAMETERS FROM CONTROL PANEL

3 wrapping programs created by operator

All functions recallable from display

Adjustable rotation speed from 5 to 12 rpm

Carriage ascent and descent speed independently adjustable from 1.3 to 5.4 m/min

Revolutions at the base of the pallet from 1 to 10

Revolutions at the top of the pallet from 1 to 10

Intermediate reinforcement turns

Pallet height photocell reading delay

Film tension in each phase of the wrapping cycle (For FE trolleys)

ACTIVATABLE FUNCTIONS

Keyboard lock

Programmable start and end wrapping height

Wrapping height pallet height with altimeter (exclusion photocell)

Sheet feeder

Soft start cycle

Step winding cycle with reinforcement and programmable number of turns

Ergonomic comfort height for film reel change

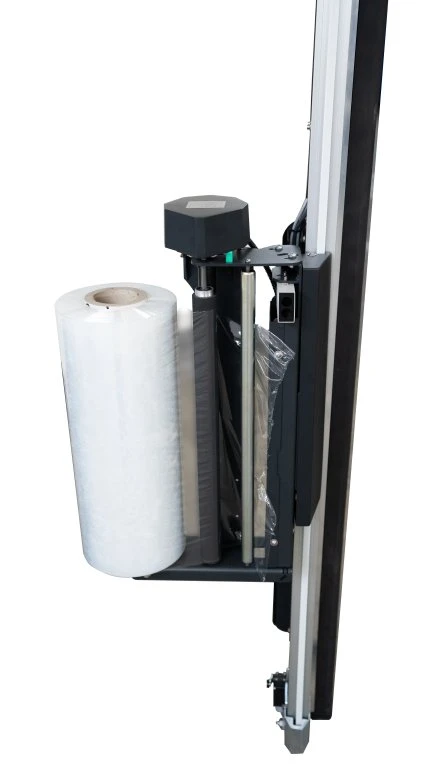

REEL HOLDER TYPE “FM” WITH MECHANICAL BRAKE

Mechanical brake on return roller with manual adjustment

Reel usable Ø 250 mm with internal Ø 76 mm – h = 500 mm with max weight 20kg

ALTERNATIVELY PRS/PS TROLLEY MOTORIZED PRESTRETCH

 20kg
