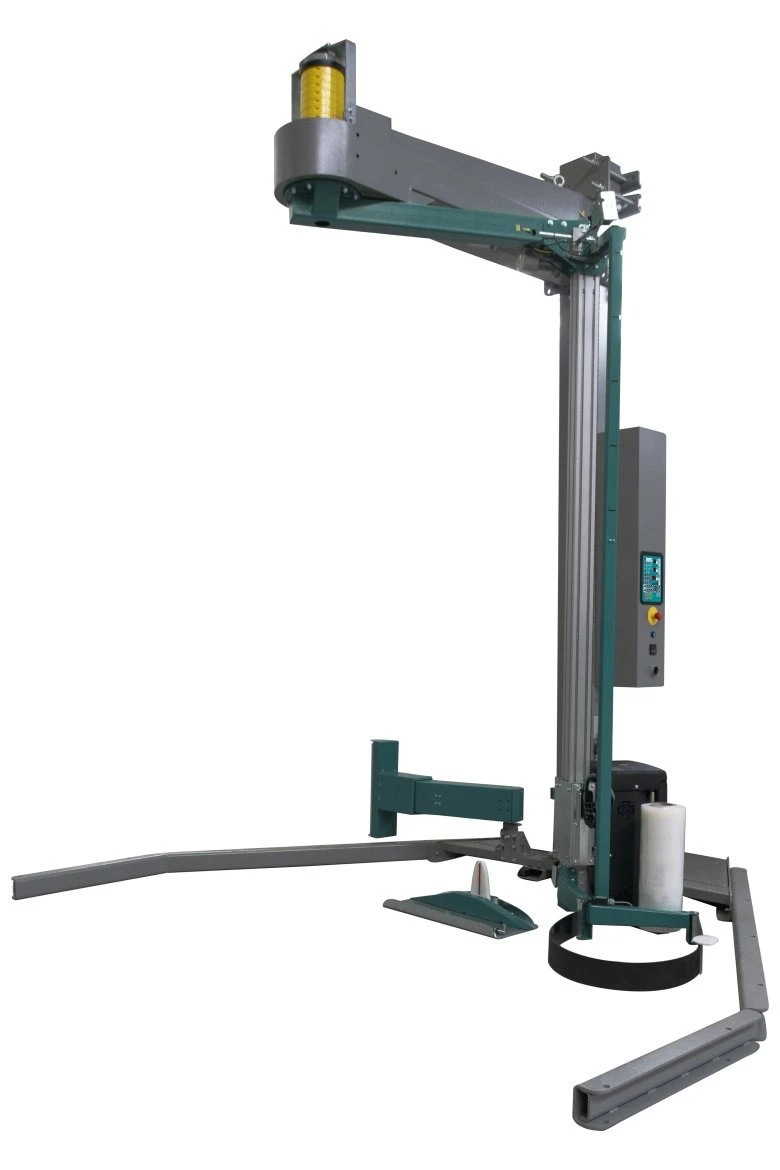

Lybra
TECHNICAL FEATURES

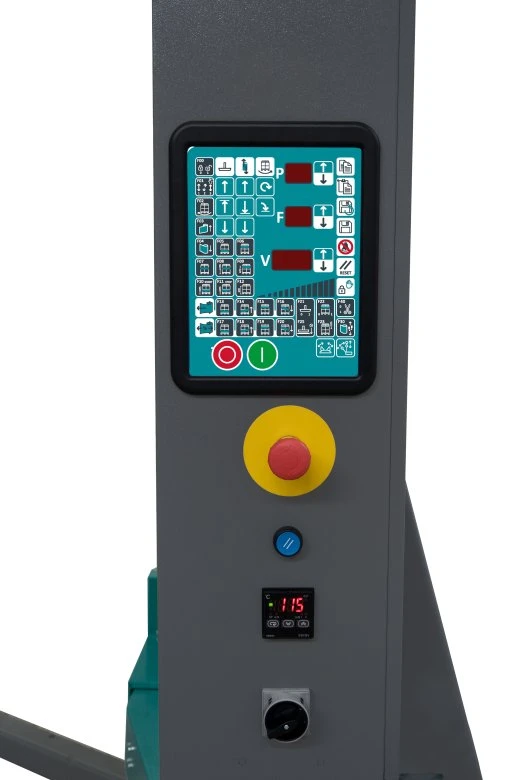

Control panel with 11'' Touch display
Useful diagonal Ø 2,075 mm
Maximum load dimensions: 1,200 x 1,200 mm
Useful wrapping height (Pallet included): 2,200 mm
Gear rotation ring
Load height reading via automatic photocell
Gradual and adjustable rotation start/stop with inverter
Adjustable carriage up/down speed with inverter
Safety bumpers
Mushroom emergency button according to CE standards
Machine reset button according to CE standards
Acoustic signal to start cycle and stop at end of cycle
Special accident prevention safety systems to operate without additional protections
Pneumatic power supply: 5-6 bar (50 Nl / pallet)

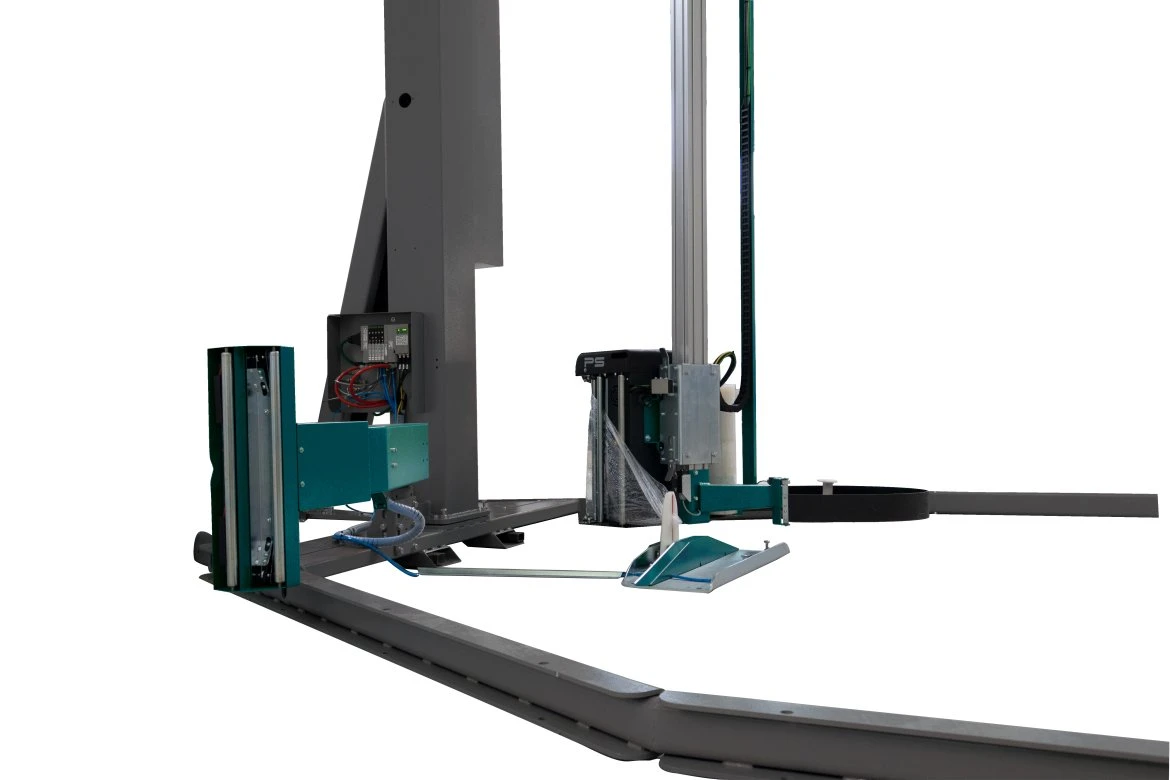

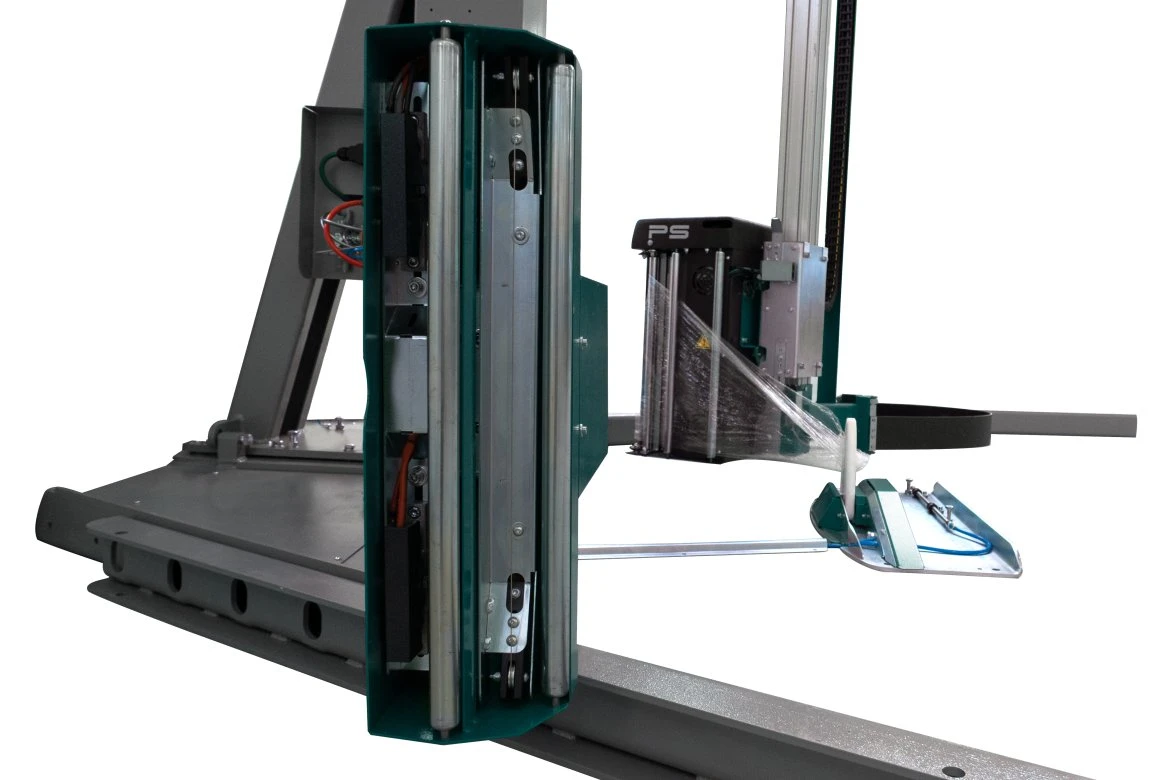

CLAMP SYSTEM AND AUTOMATIC FILM CUTTING AT END OF CYCLE
The operator loads the pallet onto the machine and commands the start of the wrapping cycle
Once this operation is completed, the machine cuts and clamps the film
The film remains attached to the clamp, ready to wrap the next pallet
The entire cycle is completely automatic
The operator picks up the pallet at the end of the cycle
CYCLES SELECTABLE FROM THE PANEL
F01 - 01 - Standard cycle (up and down)
F01 - 02 - Half cycle (up only or down only)
F01 - 03 - Complete cycle with low revolutions at the same height as the start
F01 - 04 - Rapid cycle (with little or no overlap)
F01 - 05 - Layer cycle
F01 - 06 - Economic cycle (to save some low revolutions)
PARAMETERS ADJUSTABLE FROM THE CONTROL PANEL
99 wrapping programs created by the operator All functions can be recalled from the display
Adjustable rotation speed from 5 at 12 rpm
Carriage ascent and descent speeds independently adjustable from 1.3 to 5.4 m/min
Revolutions at the base of the pallet from 1 to 10
Revolutions at the top of the pallet from 1 to 10
Intermediate reinforcement turns
Pallet height photocell reading delay
Film tension in each phase of the wrapping cycle (For FE-PRS-PS trolleys)
Variable film pre-stretch in each phase of the wrapping cycle (Optional with PS trolley)
ACTIVATABLE FUNCTIONS
Keyboard lock
Programmable wrapping start and end height
Wrapping height at pallet height with altimeter (photocell excluded)
Sheet feeder
Soft start cycle
Wrapping step cycle with reinforcement and programmable number of turns
Ergonomic comfort height for film reel change
“FE” TYPE REEL HOLDER TROLLEY WITH MECHANICAL BRAKE
Tension on return roller with adjustment on operator panel
Usable reel Ø 250 mm with internal Ø 76 mm – h = 500 mm with max weight 20kg
ALTERNATIVELY PRS / PS TROLLEY MOTORIZED PRESTRETCH
